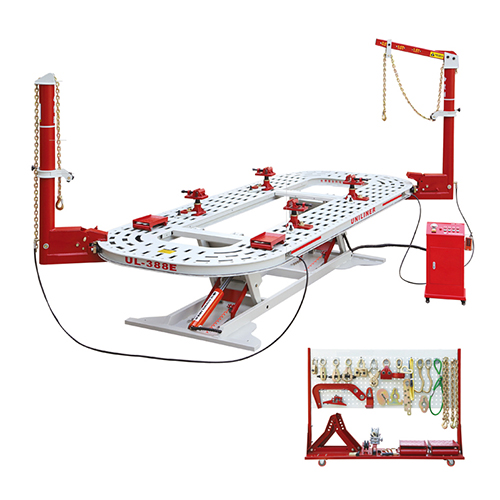

Product Model: UL-388E
Product description:
1. Platform is made of high-quality manganese steel, procedures including CNC plasma cutting, CO2 welding (Panasonic),
2. Self-locking vertical hydraulic lifting device: Vertical self-locking hydraulic lifting platform is secured double safety by hydraulic pressure and mechanical locking devices. The lifting range is 380mm-1080mm in which can be adjusted. It can be also one side lifting from 0-380mm; it’s easy to drive the car onside.
3. Towers can be rotated 360 degrees along the platform and be made of 10mm seamless steel pipe, which means more convenient moving and high intensity if both towers straighten in diagonal line.
4. Pulling tower: Towers can be rotated 360 degrees along the platform and be made of 10mm seamless steel pipe, diameter of pulling tower tube is 160mm, which means more convenient moving and high intensity if both towers straighten in diagonal line. You only need to move the handle to put the shaft into the hole on the bench to fix the pulling tower.
5. Unique design of spiral movements for main clamps is easier to make jaws upper and lower on precondition of maintaining the flat level by adjusting the pole vertically to clamp different height chassis of all kinds of vehicles. Quick fixed clamp jaws by screwing the shaft clockwise, making chassis clamping more efficient.
6. The leading arm can supply multi-direction tensile during the collision repair.

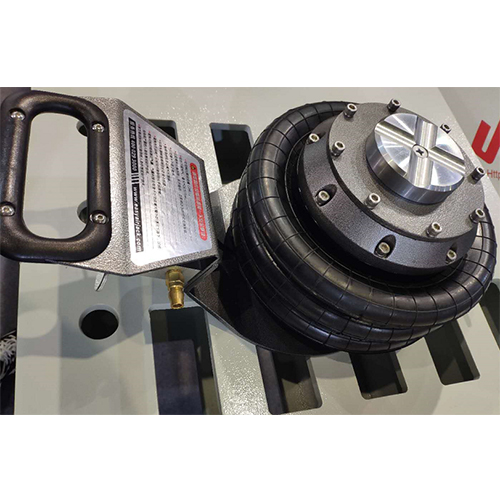

7. Pneumatic jack beam(three layers):It can be used as hydraulic floor jacks when repair different damaged chassis height. Press air to give power, the max lifting bearing is 3 ton, lifting range is 150mm-450mm.
8. High-precision and retractable alloy two dimension measurement with laser scale has no breaking point.
9. To allocate one centralized electric control cabinet. Remote control: A key in hand, operate freely.
11. All accessories and tools are mechanical streamline design and have durable life by multi-heating and forging processes.
12. Perfect service system, completely relieve your worries.
Specification:
FRAME LENGTH
5600MM/6000MM/6500MM
FRAME WIDTH
2260MM
FRAME HEIGHT
0-380-1080MM
MAX PUSH TOWER FOR PULLING TOWER
100KN
RATED VOLTAGE
220/380V
WORKING RANGE OF PULLING TOWER
360°
MAX LOAD BEARING
4000KG
10. Remote controller: Make the platform lift, please press “up” key; make the platform down, please press the “down” key. When you need the tower up and down stretching, please press “tower one” key or “tower two” key.
