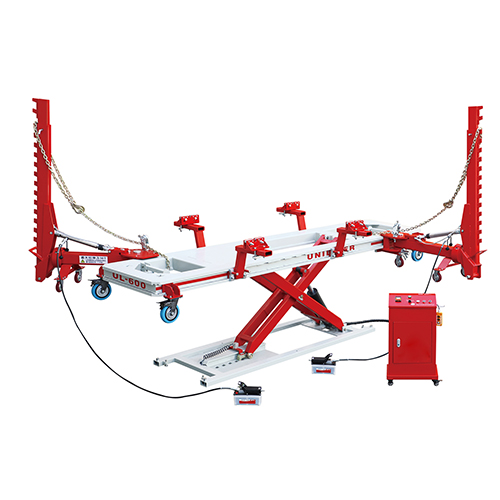

Product model: UL-600
Product Feature:
1. Basement can be put up to leave away from the ground so that it can be moved with four wheels. After fixing vehicle on the bench, move them together to specified position according to repair needs, which can solve the problem of insufficient spaces.

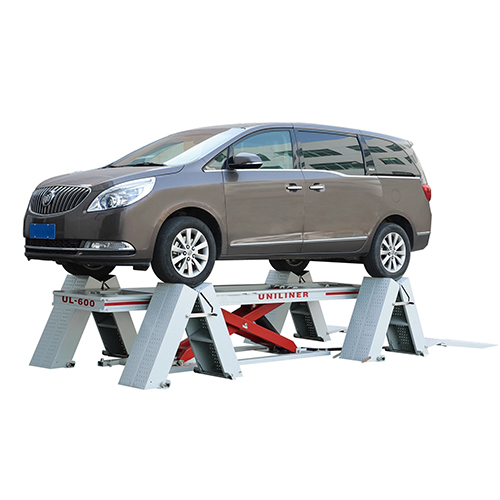

2. The vertical lifting frame can be used as scissor lift, safe lifting height is from 260mm to 1600mm.

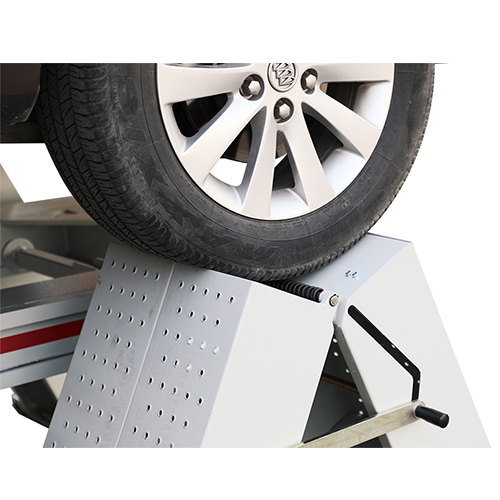

3. When ramps folded, they can be movable and used as wheel holders when clamping car chassis
4. Two flexible moving pulling towers can be fixed firmly and supply multi-direction tensile during the collision repair. Imported hydraulic system has strong power and long service life.
5. All accessories and tools are mechanical streamline design and have durable life by multi-heating and forging processes.
6. Three important points for heat treatment process to make sure the accessories quality:Overall forging ,overall conditioning (hardness HRC28 degrees); high frequency quenching of tooth profile.

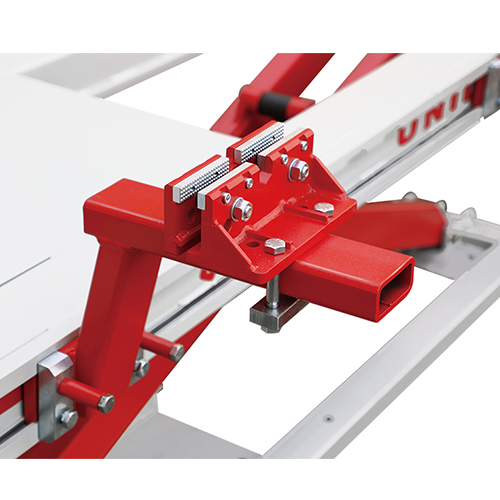

7. Patent main clamp jaw can fix auto body, main clamp and cross-beam together with one screw. Scientific design, firm fixing and quick operation improve working efficiency greatly.
Product Specification:
Length |
5000/5500/6000MM |
Width |
1170MM |
Height |
0-380-1190MM |
Pulling capacity |
100KN |
Rated voltage |
220V/380V |
Radius of pulling |
360° |
Air Pressure |
0.6-0.8Mpa |
Lift capacity |
5000KG |
Total Weight |
2500KG |
