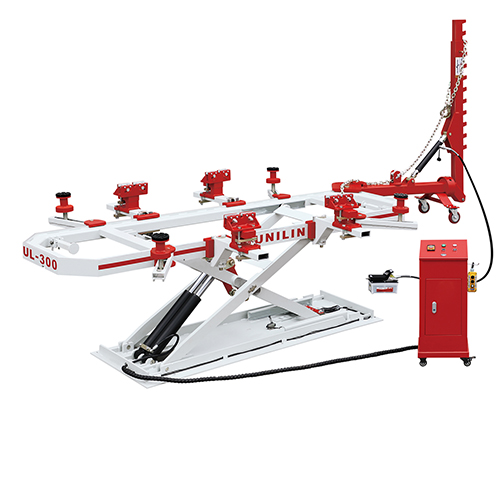

Product model: UL-300
Prdouct Feature:

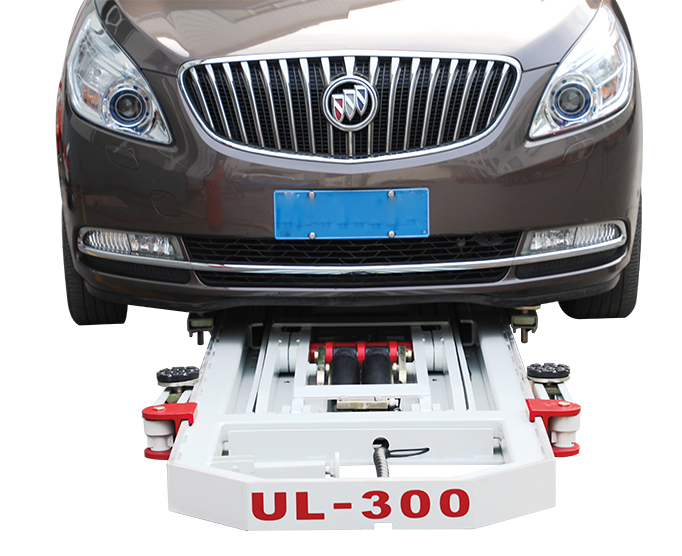

1. Vertical lifting platform, it can be down to 110mm from the floor, and make sure any of the accident car is convenient for up and down. Also it doesn’t need to hide in the floor .

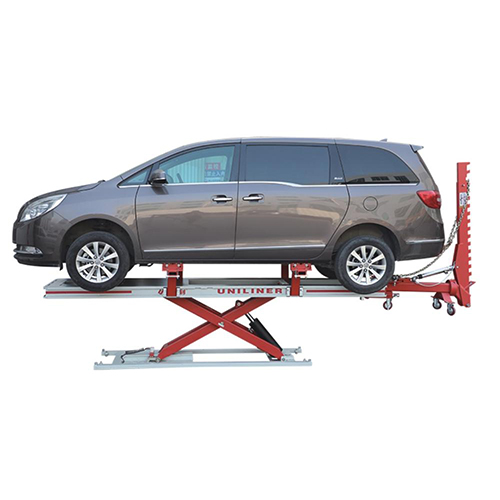

2. It can lift to 1700mm from the floor, so can be used as a scissor lift machine. The lifting frame is controlled by a hydraulic pump, operated conveniently.
3. Pulling tower: Flexible moving tower,quick fixing and wide working area,durable pulling power.
4. The main clamps: The patented designed main clamps, spiral movements, in the jaw to maintain the level of state, the upper and lower pole vertically movements, fine-tuning the level of all kinds of different vehicle chassis height of rapid adjustment . The unique design of main clamps, it is fixed by only two bolts, table top needle jaw to make sure every type car is quickly and firmly clamped, improve efficiency.

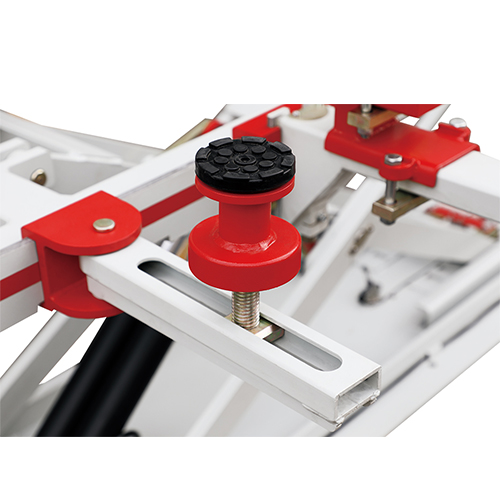

5. Adjustable arms: Four adjustable arms can wave in 180º range.They can lift nearly all kinds of car.
6. Locking system: Nine grade locking system to reach different height,fast and safe unlocking and locking mechanism.
Product Specification:
Frame platform
3320mm
Frame height
880mm
Frame height
110-1700mm
Max push tower por pulling tower
60KN
Rated voltage
220/380V
Working range of pulling tower
360º
Max load bearing
3000KG
