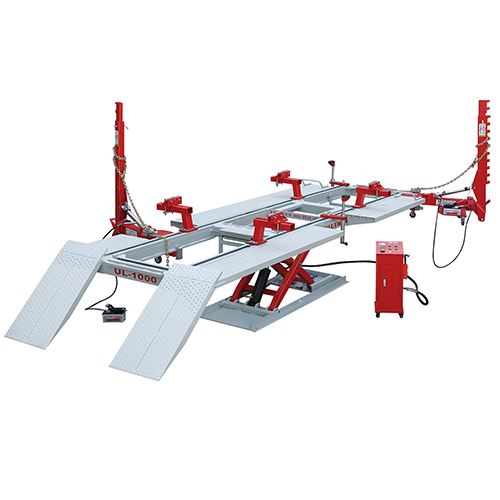

Product Model: UL-1000
Product Feature:
1. This type in your shop will be able to repair each collision damaged vehicle that enters your shop from slight cosmetic work to full-frame repairs.

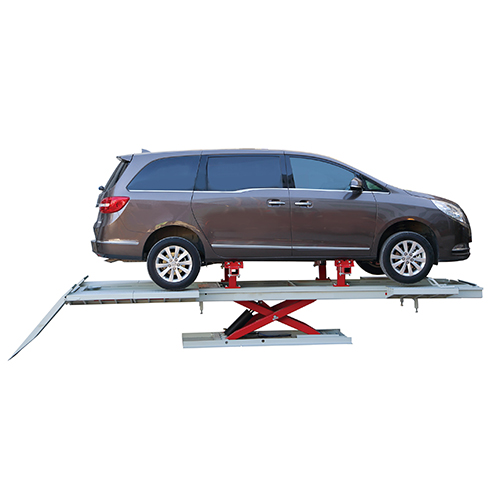

2. Full lifting capacity with removable ramps;
3. Tilt feature makes loading easier.

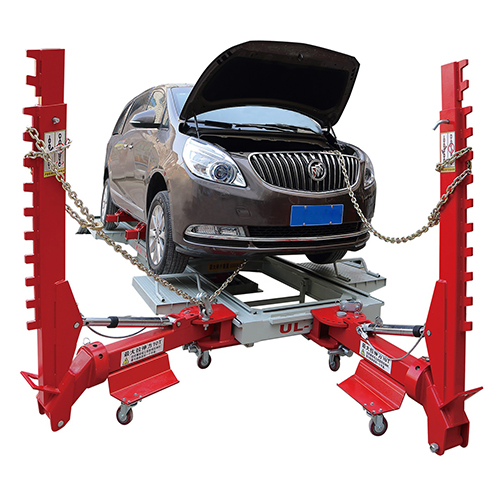

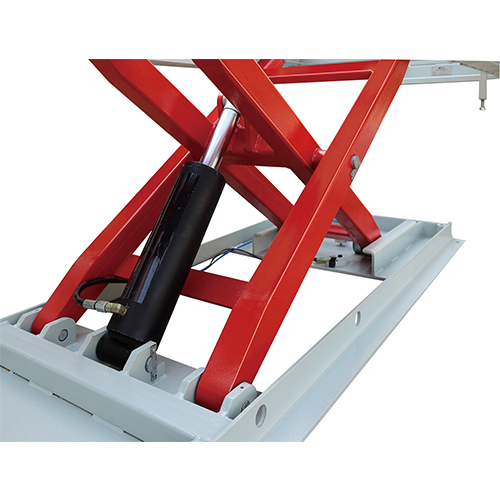

4. Two flexible moving pulling towers can be fixed firmly and supply multi-direction tensile during the collision repair. Imported hydraulic system has strong power and long service life.
5.All accessories and tools are mechanical streamline design and have durable life by multi-heating and forging processes.
6. Three important points for heat treatment process to make sure the accessories quality:
Overall forging Overall conditioning (hardness HRC28 degrees);
7. High frequency quenching of tooth profile ( hardness HRC40 degrees).

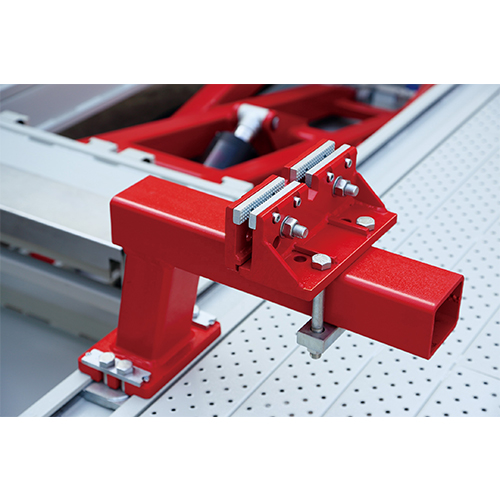

8. Patent main clamp jaw can fix auto body, main clamp and cross-beam together with one screw. Scientific design, firm fixing and quick operation improve working efficiency greatly.
Specification:
Length |
4500/5000/5500/6000MM |
Width |
1170MM |
Height |
0-380-1190MM |
Pulling capacity |
100KN |
Rated voltage |
220V/380V |
Radius of pulling |
360° |
Air Pressure |
0.6-0.8Mpa |
Lift capacity |
5000KG |
Total Weight |
2500KG |
