Product Model: UL-189
Product Feature:

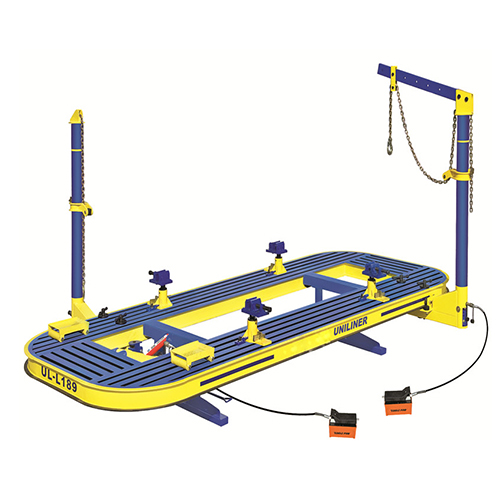

1. The hydraulic lifring platform assembled with light and flexible support leg, make the car drive on and off more conveniently.6-rows of 14th I-Steel Width 2232mm Length 5600mm.
2. Hydraulic Lifting
Tilt hydraulic lifting platform makes the accidental vehicle loading and unloading more conveniently (even drive the car onto the platform directly).
3. Towers can be rotated 360 degrees along the platform and be made of 10mm seamless steel pipe, which means more convenient moving and high intensity if both towers straighten in diagonal line.
4. Unique design of spiral movements for main clamps is easier to make jaws upper and lower on precondition of maintaining the flat level by adjusting the pole vertically to clamp different height chassis of all kinds of vehicles. Quick fixed clamp jaws with only two crews, making chassis clamping more efficient.

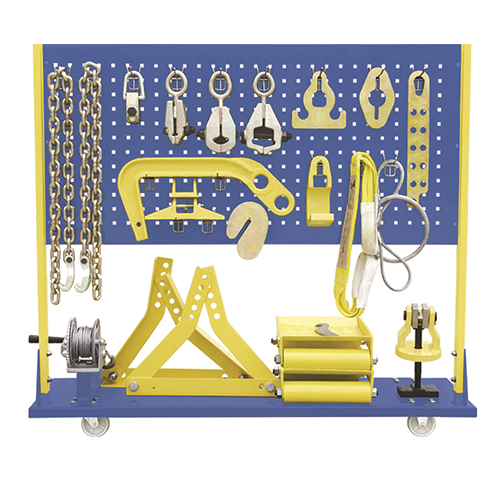

5. All accessories and tools are mechanical streamline design and have durable life by multi-heating and forging processes.
Specification:
FRAME LENGTH
5600MM
FRAME WIDTH
2232MM
FRAME HEIGHT
0-560MM
MAX PUSH TOWER FOR PULLING TOWER
100KN
RATED VOLTAGE
220/380V
WORKING RANGE OF PULLING TOWER
360°
MAX LOAD BEARING
3500KG
