Model: UL-199
Product Feature:
1.The platform is made of 6mm thickness of rectangular tube, welded by full board with multi-positioning holes surrounded, which ensures the platform with high flatness, strong anti-torsion strength, no-blind fixing ways and efficient straightening.
2. Tilt hydraulic lifting platform makes the accidental vehicle loading and unloading more conveniently (even drive the car onto the platform directly).
3. Towers can be rotated 360 degrees along the platform and be made of 10mm seamless steel pipe, which means more convenient moving and high intensity if both towers straighten in diagonal line.
4. Unique design of spiral movements for main clamps is easier to make jaws upper and lower on precondition of maintaining the flat level by adjusting the pole vertically to clamp different height chassis of all kinds of vehicles. Quick fixed clamp jaws with only two crews, making chassis clamping more efficient.

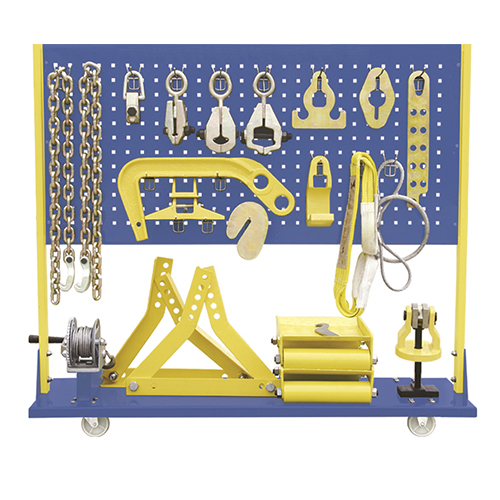

5. All accessories and tools are mechanical streamline design and have durable life by multi-heating and forging processes.
6. Car data with global synchronization offered by Mitchell and major auto manufactures to make sure the latest update.
7. The leading arm can supply multi-direction tensile during the collision repair.
8. Durable American Eagle Pro Hydraulic foot pumps.
Specification:
Length |
5200MM |
WIDTH |
2140MM |
HEIGHT |
520MM |
PULLING CAPACITY |
95KN |
AIR SUPPLY REQUIRED |
0.8MPA |
RADIUS OF PULLING |
360° |
MAX LOAD |
3500KG |
