Two Post Car Lift Model CP-2040

  • Description: This is one economical, with high qualitydual point manual lock released two post lift.
  • INQUIRY   EMAIL

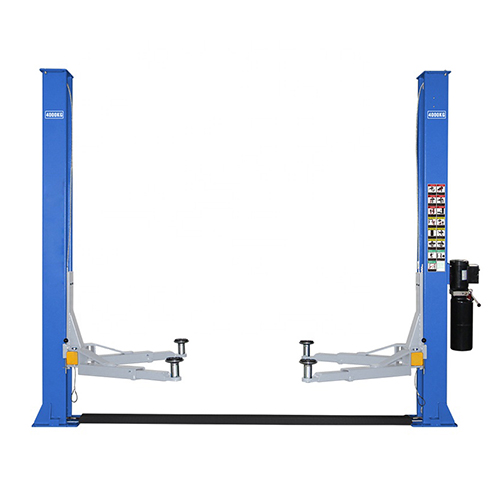

Model: CP-2040 two post lift

4000kg Capacity | Dual point manual lock release

Product Feature:

♦ Dual-point mechanical lock release.

♦ Two-stage elbow short arms and two-stage long arms provide asymmetric lifting of  vans and off-road vehicles.

♦ Arms suitable for quick drop-in extensions and other lifting accessories.

♦ Automatic arm locking during lifting and automatic unlocking when the arm reaches  the floor.

♦ Equipped with safety valve to prevent overloading and in case of hydraulic pipe  fracture.

♦ Self-controlled lowering speed.

♦ Mechanical safety latch with automatic engagement ensuring maximum safety  when lift is in standing position.

♦ Rubber door guards protect vehicle from door damage.


Specification:

Lifting Capacity

4000kg

Min. Height

110mm

Max. Lifting Height

1800mm

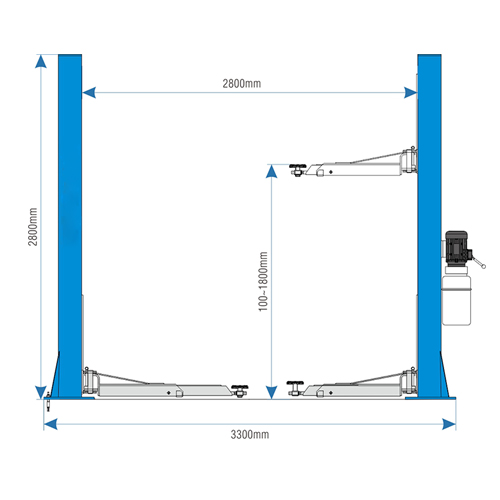

Overall Height

2800mm

Overall Width

3300mm

Width between Posts

2800mm

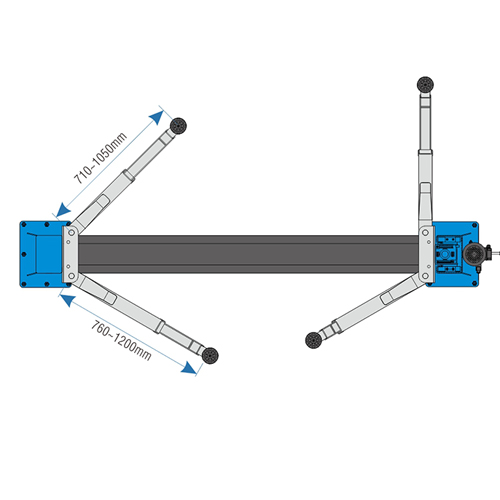

Short Arm Length

710mm~1050mm

Long Arm Length

760mm~1200mm

Lifting/Lowering Time

55 Sec./35 Sec.

Motor Power

2.2kW

Power Supply

380V/50HZ/3Ph

220V/50HZ/1Ph
