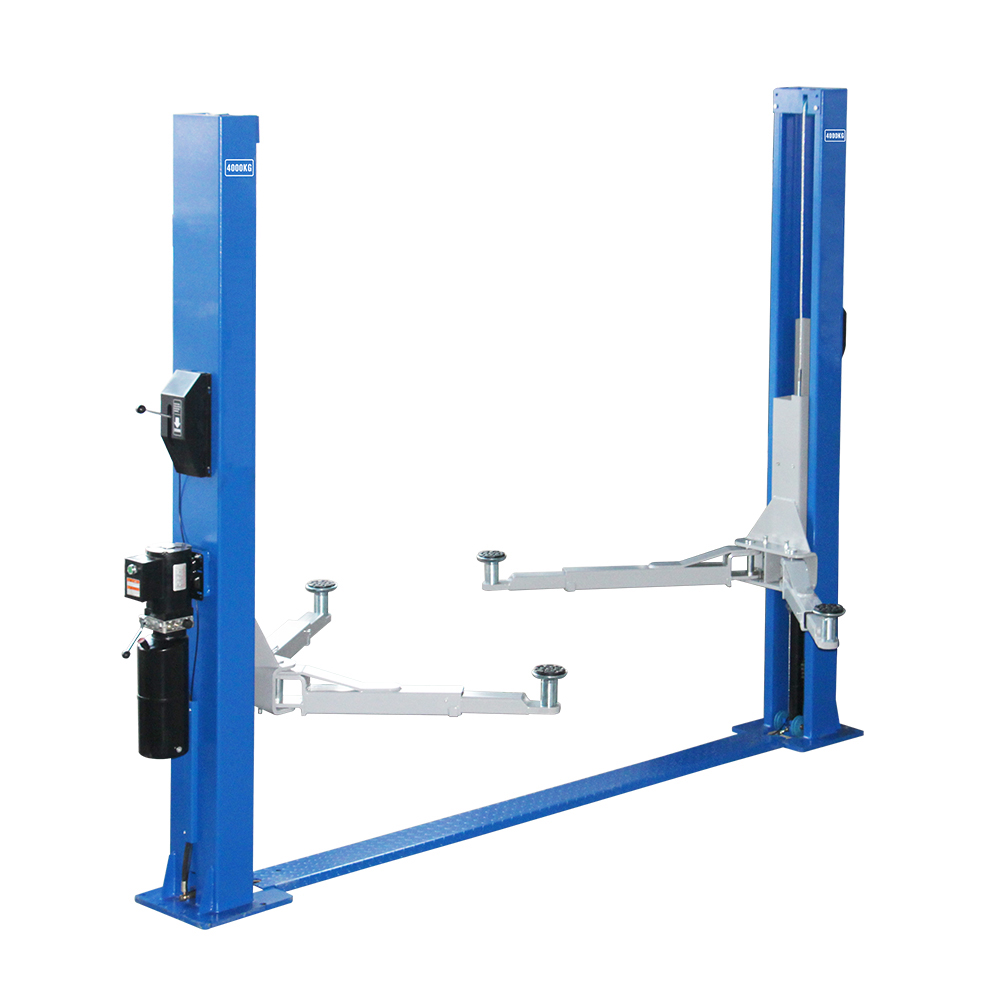

Product Model: CP-2140S
Product Feature:
♦ Singlel-point mechanical lock release.
♦ Two-stage elbow short arms and two-stage long arms provide asymmetric lifting of vans and off-road vehicles.
♦ Arms suitable for quick drop-in extensions and other lifting accessories.
♦ Automatic arm locking during lifting and automatic unlocking when the arm reaches the floor.
♦ Equipped with safety valve to prevent overloading and in case of hydraulic pipe fracture.
♦ Self-controlled lowering speed.
♦ Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position.
♦ Rubber door guards protect vehicle from door damage.
Product Specification:
Lifting Capacity |
4000kg |
Min. Height |
110mm |
Max. Lifting Height |
1800mm |

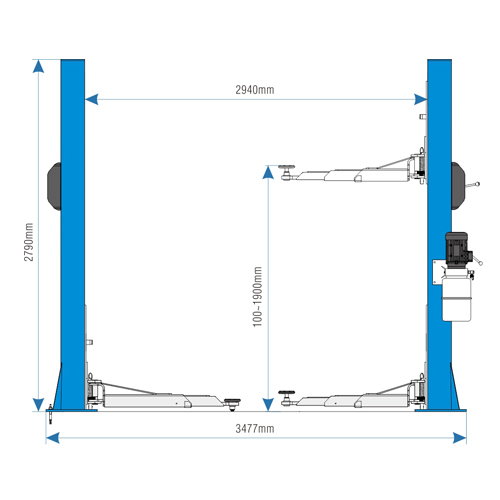

Overall Height |
2790mm |
Overall Width |
3447mm |
Width between Posts |
2940mm |

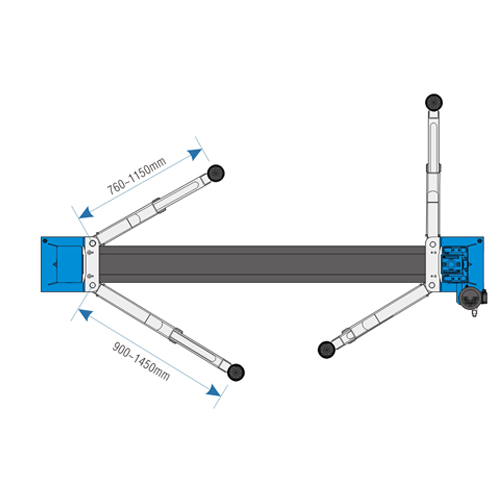

Short Arm Length |
760~1150mm |
Long Arm Length |
900~1450mm |
Lifting/Lowering Time |
55 Sec./45 Sec. |
Motor Power |
2.2kW |
Power Supply |
380V/50HZ/3Ph 220V/50HZ/1Ph |
