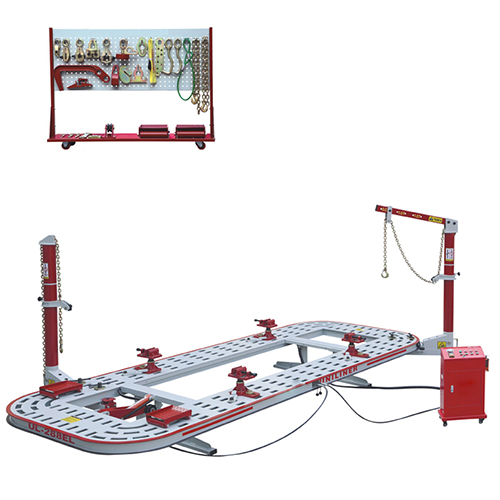

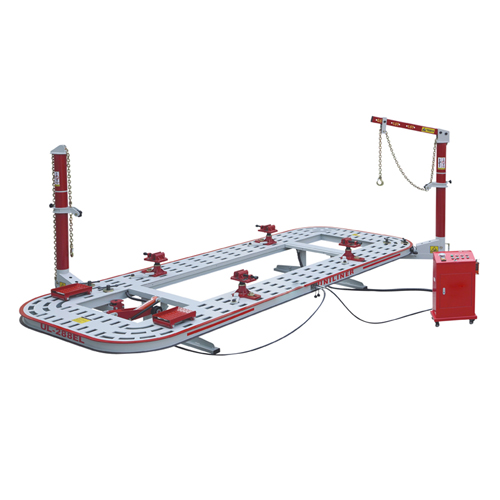

Product Feature:
1. The main clamp: Unique design of spiral movements for main clamps is easier to make jaws upper and lower on precondition of maintaining the flat level by adjusting the pole vertically to clamp different height chassis of all kinds of vehicles. Quick fixed clamp jaws by screwing the shaft clockwise, making chassis clamping more efficient.
2. Hydraulic cylinder: Tilt hydraulic lifting platform makes the accidental vehicle loaded and unloaded more convenient (even drive the car onto the platform directly).
3. Pulling tower: The pulling towers can work along the track for 360° rotation, operated more convenient. The pulling towers pull strong each other and highly active, and the material is made of the 10mm wall thickness seamless pipe.

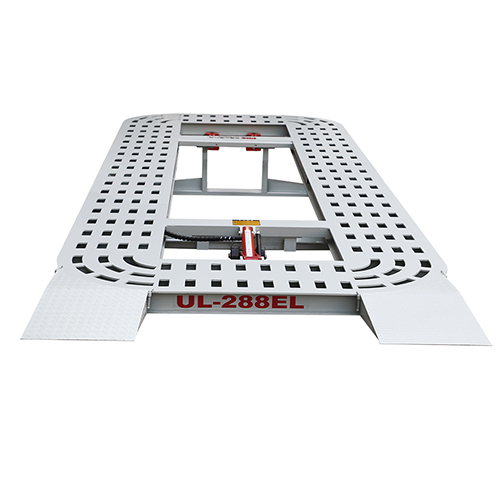

4. Platform:Platform is made of high-quality manganese steel, procedures including CNC plasma cutting, CO2 welding (Panasonic), polishing (shot blasting cleaning machine) and power coating ensure the platform with high flatness, strong anti-torsion strength, no-blind fixing ways and efficient straightening

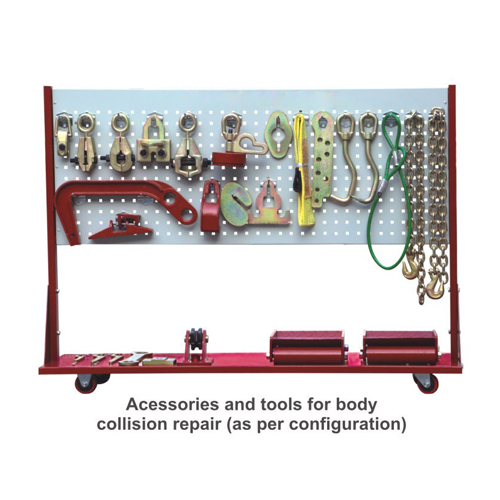

5. Tool car: All accessories and tools are mechanical streamline design and have durable life by multi-heating and forging processes. Three important points for heat treatment process to make sure the accessories quality: Overall forging (mould owned by UNLINER) Overall conditioning (hardness HRC28 degrees); High frequency quenching of tooth profile ( hardness HRC40 degrees).
Electric control cabinet: To allocate one centralized electric control cabinet. Remote control: A key in hand, operate freely. Working of bench and pulling towers are can be controlled by the electric cabinet or the remote control.
6. Remote control: Make the platform lift, please press “up” key; make the platform down, please press the “down” key. When you need the tower up and down stretching, please press “tower one” key or “tower two” key.
specification:
Length |
5600/6000mm |
WIDTH |
2100mm |
HEIGHT |
520mm |
PULLING CAPACITY |
100KN |
AIR SUPPLY REQUIRED |
0.8MPA |
RADIUS OF PULLING |
360° |
MAX LOAD |
3500KG |
TOTAL WEIGHT |
3350KG |
