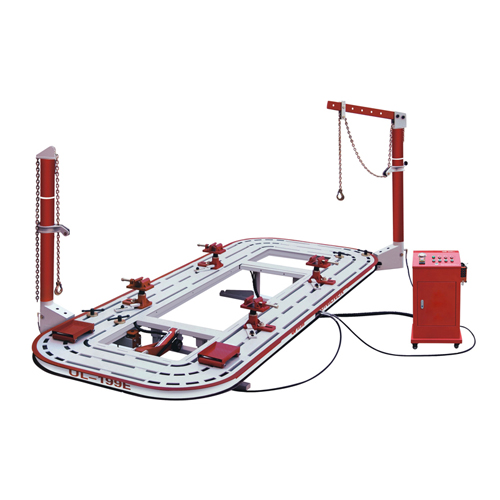

Production feature:
1. The platform is made of 6mm thickness of rectangular tube, welded by full board with multi-positioning holes surrounded, which ensures the platform with high flatness, strong anti-torsion strength, no-blind fixing ways and efficient straightening.
2. Tilt hydraulic lifting platform makes the accidental vehicle loading and unloading more conveniently (even drive the car onto the platform directly). .
3. Unique design of spiral movements for main clamps is easier to make jaws upper and lower on precondition of maintaining the flat level by adjusting the pole vertically to clamp different height chassis of all kinds of vehicles. Quick fixed clamp jaws with only two crews, making chassis clamping more efficient.
4. The leading arm can supply multi-direction tensile during the collision repair.
5. Allocate one centralized electric control cabinet. Remote control: A key in hand, operate freely.
6. Remote controller: to lift the platform up, please press “up” key; to make the platform down, please press the “down” key. When you need the tower up and down stretching, please press “tower one” key or “tower two” key.
Specification:
5200mm/5600mm
WIDTH
2140MM
HEIGHT
520MM
PULLING CAPACITY
95KN
RATED VOLTAGE
220/380V
AIR SUPPLY REQUIRED
0.8MPA
RADIUS OF PULLING
360°
MAX LOAD
3500KG
LENGTH
