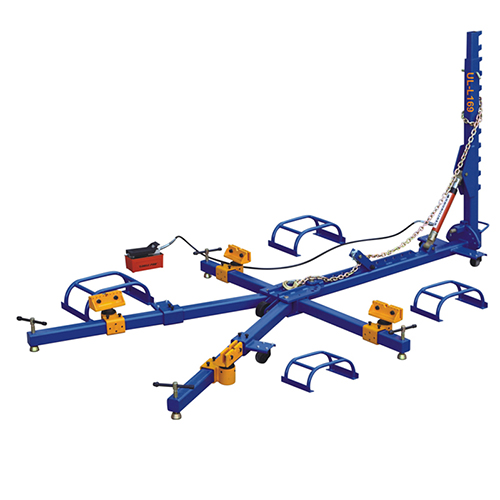

Auto body collision repair frame bench model UL-169

  • Description: L169 is simple and convenient car repair equipment for quick repair. Its’ simple operation, flexible moving and saving space make the quick and small repair more simple and easy.
  • INQUIRY   EMAIL

Product Model: UL-L169

Product Feature:

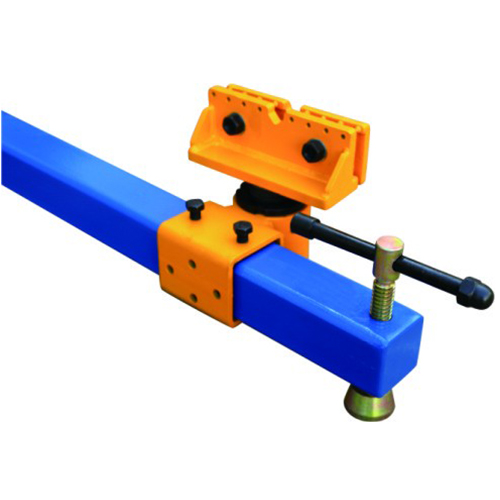

1.The main clamp can rotate in 360 degree and fine-tuning. It’s convenient for quick and exact clamp.

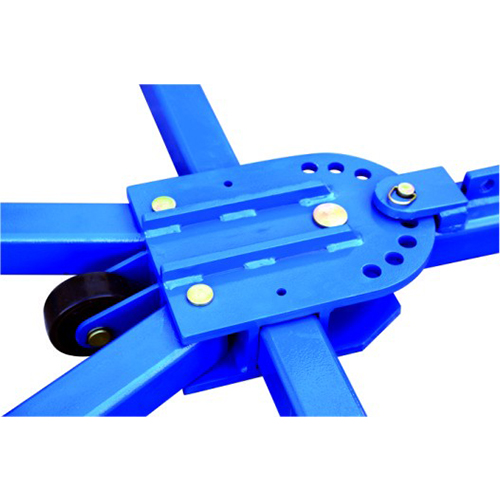

2.The frame can rotate in 180 degree and stand pillar rotate in 130 degree. No working blind spot, flexible operation.

3.Working platform of super-low height: 136mm is suitable for most models for quick repair.

4.The fixed system of down feet screw can make the fixation quick and steady by make the wheels away from the ground.

5.Four universal wheels make the frame more steadily and flexible.

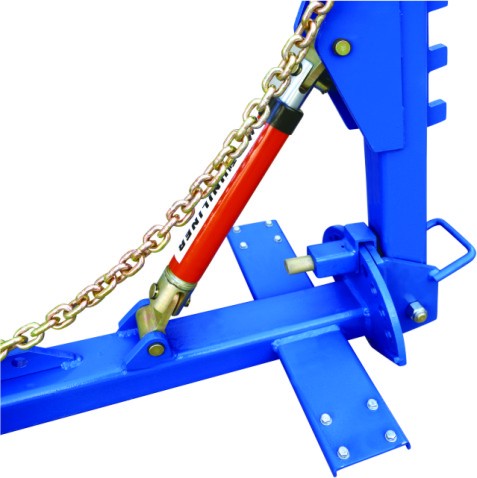

10T high-pressure oil cylinder makes it strong and durable.

6.Four holding stands enlarge the working space. It’s easy to repair the car which chassis is lower than 190mm.

7.The tools mechanical streamline design, after metal, heat treatment process, long service life and high-intensity, almost considered all deformation correction.

Specification:

Length:

3780mm

Width:

2000mm

Height:

136-228mm

Max pulling capacity: (tons)

10T

Air compressor

0.8Mpa

Height of pulling pillar

1500mm--2200mm

Working ranges

180°

Weight

380KG
