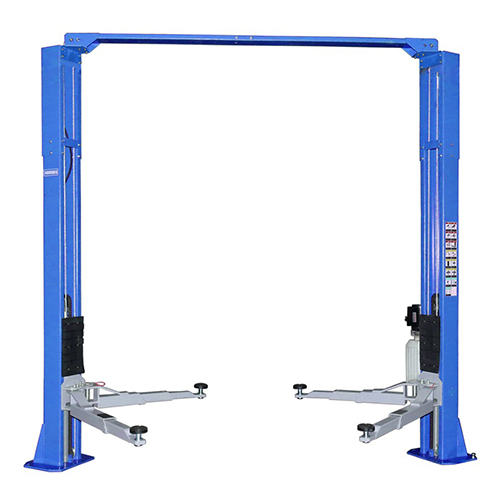

Product Model: CP-3140ASY
Product Feature:
♦ Baseless lift, allows easy access into the working area.
♦ Asymmetric column design makes vehicle door open easier.
♦ Dual-point mechanical lock release.
♦ Two-stage elbow type arms and two-stage straight arms provide asymmetric lifting of vans and off-road vehicles.
♦ Arms suitable for quick drop-in extensions and other lifting accessories.
♦ Automatic arm locking during lifting and automatic unlocking when the arm reaches the floor.
♦ Equipped with safety valve to prevent overloading and in case of hydraulic pipe fracture.
♦ Self-controlled lowering speed.
♦ Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position.
♦ Overhead safety cut off.
♦ Rubber door guards protect vehicle from door damage.
Specification:
Lifting Capacity
4000kg

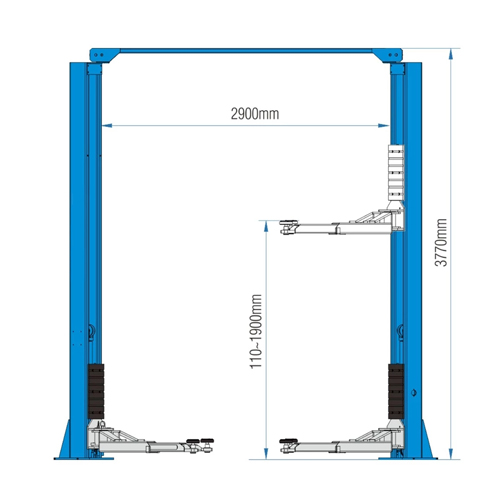

Min. Height
110mm
Max. Lifting Height
1900mm
Overall Height
3770mm
Overall Width
2773mm
Width between Posts
2900mm
Short Arm Length
600mm~1100mm
Long Arm Length
845mm~1330mm
Lifting/Lowering Time
55 Sec./45 Sec.
Motor Power
2.2kW
Power Supply
380V/50HZ/3Ph
220V/50HZ/1Ph
