Product Model : CP-3340
Product Feature:
♦ Baseless lift, allows easy access into the working area.
♦ Automatic solenoid lock release
♦ Three-stage short arms and two-stage long arms provide asymmetric lifting of vans and off-road vehicles.
♦ Arms suitable for quick drop-in extensions and other lifting accessories.
♦ Automatic arm locking during lifting and automatic unlocking when the arm reaches the floor
♦ Equipped with safety valve to prevent overloading and in case of hydraulic pipe fracture.
♦ Self-controlled lowering speed
♦ Mechanical safety latch with automatic engagement and manual release ensuring maximum safety when lift is in standing position
♦ Overhead safety cut off
♦ Adjustable column height
♦ Foot safety device on each lifting arm
♦ Rubber door guards protect vehicle from door damage

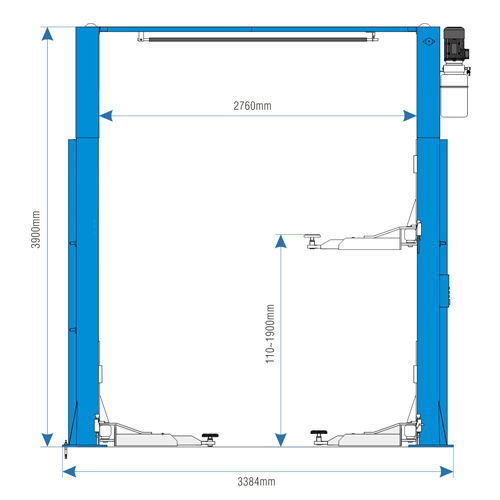

Product Specificaiton:
Lifting Capacity
4500
Min. Height
110mm
Max. Lifting Height
1900mm
Overall Height
3900mm
Overall Width
3384mm
Width between Posts
2760mm
Short Arm Length
685-1100mm
Long Arm Length
845-1330mm
Lifting/Lowering Time
55 Sec./45 Sec.
Motor Power
2.2kW
Power Supply
380V/50Hz/3Ph, 220V/50Hz/1Ph
