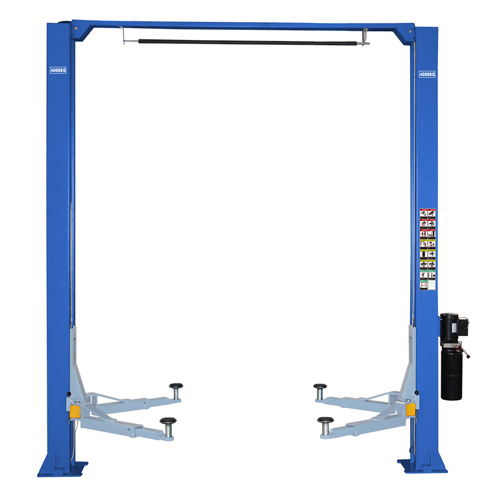

Product Model: CP-3040
Product Feature:
♦ Baseless lift, allows easy access into the working area.
♦ Dual-point mechanical lock release
♦ Two-stage elbow type arms and two-stage straight arms provide asymmetric lifting of vans and off- road vehicles.
♦ Arms suitable for quick drop-in extensions and other lifting accessories.
♦ Automatic arm locking during lifting and automatic unlocking when the arm reaches the floor
♦ Equipped with safety valve to prevent overloading and in case of hydraulic pipe fracture.
♦ Self-controlled lowering speed
♦ Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position
♦ Overhead safety cut off
♦ Rubber door guards protect vehicle from door damage
Lifting Capacity
4000kg
Min. Height
100mm
Max. Lifting Height
1850mm

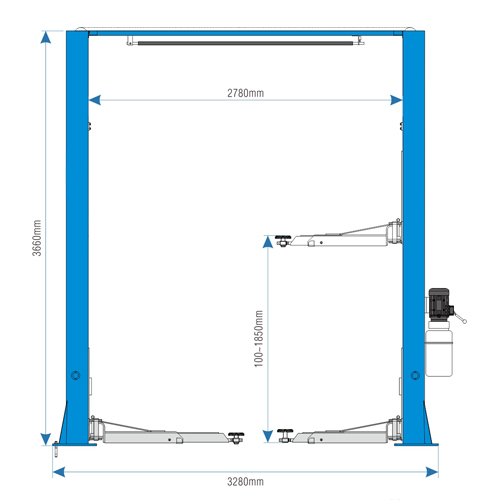

Overall Height
3660mm
Overall Width
3280mm
Width between Posts
2780mm

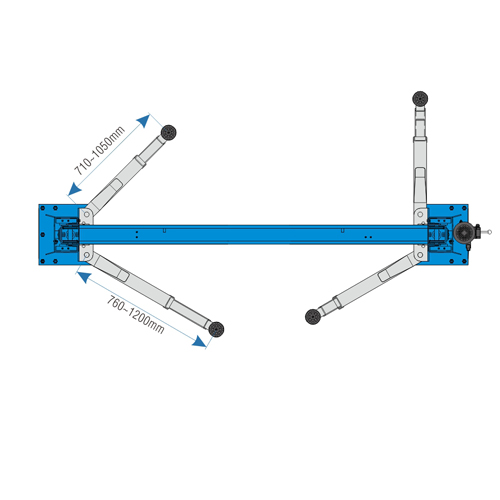

Supporting arm length rear min
710mm~1050mm
Supporting arm length rear max
760mm~1200mm
Lifting/Lowering Time
55 Sec./45 Sec.
Motor Power
2.2kW
Power Supply
380V/50Hz/3Ph, 220V/50Hz/1Ph
