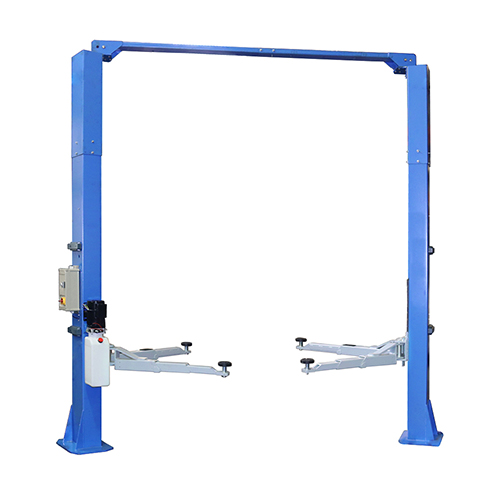

Product Model: CP-3440ASY
Product Feature:
♦ Baseless lift, allows easy access into the working area.
♦ Automatic solenoid lock release.
♦ Asymmetric column design makes vehicle door open easier.
♦ Three-stage short arms and two-stage long arms provide asymmetric lifting of vans and off-road vehicles.
♦ Arms suitable for quick drop-in extensions and other lifting accessories.
♦ Automatic arm locking during lifting and automatic unlocking when the arm reaches the floor.
♦ Equipped with safety valve to prevent overloading and in case of hydraulic pipe fracture.
♦ Self-controlled lowering speed.
♦ Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position.
♦ Overhead safety cut off.
♦ Adjustable column height.
♦ Foot safety device on each lifting arm.
♦ Rubber door guards protect vehicle from door damage.
Specification:
Lifting Capacity |
4000kg |
Min. Height |
110mm |
Max. Lifting Height |
1900mm |
Overall Height |
37700mm |
Overall Width |
3773mm |
Width between Posts |
2900mm |
Short Arm Length |
600~1100mm |
Long Arm Length |
845~1330mm |
Lifting/Lowering Time |
55 Sec./45 Sec. |
Motor Power |
2.2kW |
Power Supply |
380V/50HZ/3Ph 220V/50HZ/1Ph |
