Two post car lift

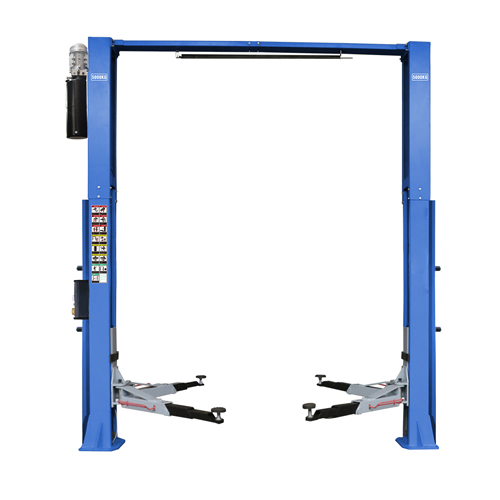

  • Two post car lift Model CP-3460
  • Two post car lift Model CP-3460
  • Two post car lift Model CP-3460
Two post car lift Model CP-3460Two post car lift Model CP-3460Two post car lift Model CP-3460

Two post car lift Model CP-3460

  • Description: CP-3460 is one model two post car lift with Automatic lock release, lifting capacity with 6000kg, and two columns can be adjustable.
  • INQUIRY   EMAIL

Product Model: CP-3460

Produt Feature:

 ♦ Baseless lift, allows easy access into the working area.

♦ Automatic solenoid lock release.

♦ 4x 3-stage arms for light truck lift.

♦  Arms suitable for quick drop-in extensions and other lifting accessories.

♦ Automatic arm locking during lifting and automatic unlocking when the arm reaches the floor.

♦ Equipped with safety valve to prevent overloading and in case of hydraulic pipe fracture.

♦ Self-controlled lowering speed.

♦ Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position.

♦ Adjustable column height.

♦ Foot safety device on each lifting arm.

♦ Rubber door guards protect vehicle from door damage.

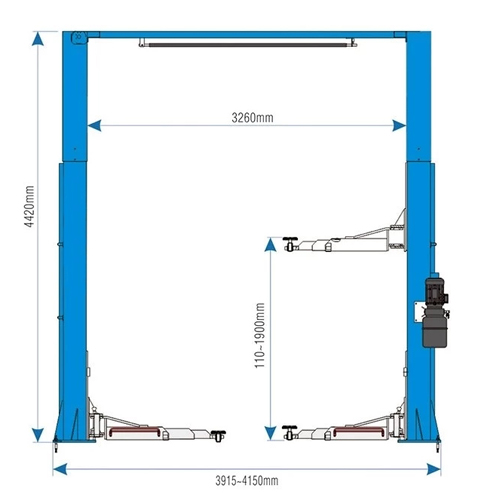

Specification:

Lifting Capacity

6000kg

Min. Height

110mm

Max. Lifting Height

1900mm

Overall Height

4420mm

Overall Width

3915mm

Width between Posts

3260mm

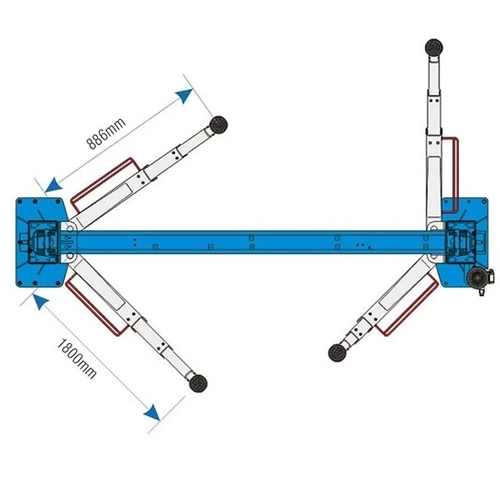

Asymmetric Arm Length

886~1800mm(3+3 stage arms)

Lifting/Lowering Time

55 Sec./45 Sec.

Motor Power

3.0kW

Power Supply

380V/50HZ/3Ph

220V/50HZ/1Ph(USD30.00 Extra)
