Product Model: CP-2168
Product Feature:
6800kg Capacity | Dual point manual lock release | Symmetric 3-stage arms
♦ Dual-point mechanical lock release
♦ Three-stage arms provide asymmetric lifting of vans and off-road vehicles
♦ Arms suitable for quick drop-in extensions and other lifting accessories
♦ Automatic arm locking during lifting and automatic unlocking when the arm reaches the floor
♦ Self-controlled lowering speed
♦ Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position
♦ Foot safety device on each lifting arm
♦ Rubber door guards protect vehicle from door damage
Lifting Capacity |
6800kg |

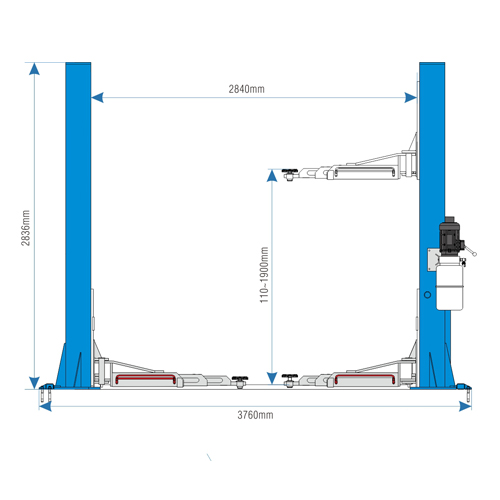

Min. Height |
110mm |
Max. Lifting Height |
1900mm |
Overall Height |
2836mm |
Overall Width |
3760mm |
Width between Posts |
2840mm |

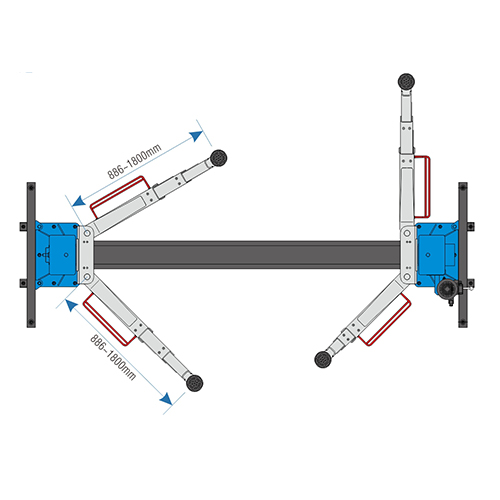

Short Arm Length |
886mm~1800mm |
Long Arm Length |
845mm~1330mm |
Lifting/Lowering Time |
55 Sec./45 Sec. |
Motor Power |
3 kW |
Power Supply |
380V/50Hz/3Ph, 220V/50Hz/1Ph |
