Car lift

  • Two post car lift Model CP-2340
  • Two post car lift Model CP-2340
  • Two post car lift Model CP-2340
Two post car lift Model CP-2340Two post car lift Model CP-2340Two post car lift Model CP-2340

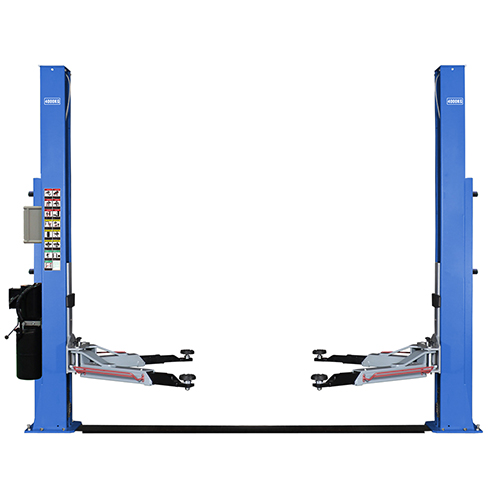

Two post car lift Model CP-2340

  • Description: CP-2340 is one model automatic solenoid lock release , 24v control system , with 4000kg lifting capacity car lift.
  • INQUIRY   EMAIL

Product Model: CP-2340 two post car lift

Product Feature:

1.  Automatic solenoid lock release.

2. Three-stage short arms and two-stage long arms provide asymmetric lifting of vans and off-road vehicles.
3.
Arms with double threaded lifting pads.

4. Automatic arm locking during lifting and automatic unlocking when the arm reaches the floor.

5.  Equipped with safety valve to prevent overloading and in case of hydraulic pipe fracture.

6. Self-controlled lowering speed.

7. Mechanical safety latch with automatic engagement ensuring maximum safety when lift is in standing position.

8.  Foot safety device on each lifting arm.

9. Rubber door guards protect vehicle from door damage.
10.
Lowering operation through manual lowering valve on power pack.

Specification:

Lifting Capacity

4000kg

Min. Height

110mm

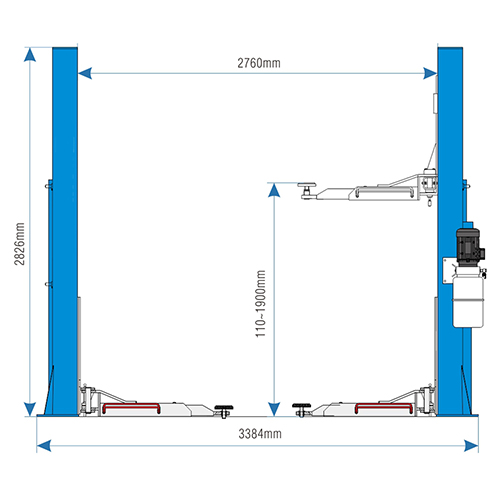

Max. Lifting Height

1900mm

Overall Height

2826mm

Overall Width

3384mm

Width between Posts

2760mm

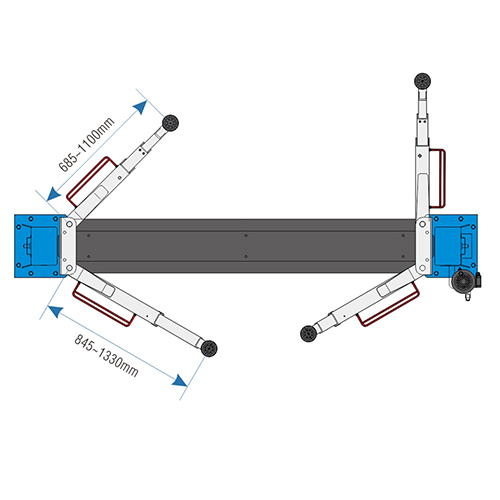

Short Arm Length

685~1,100mm

Long Arm Length

845~1,330mm

Lifting/Lowering Time

55 Sec./45 Sec.

Motor Power

2.2kW

Power Supply

380V/50HZ/3Ph

220V/50HZ/1Ph
