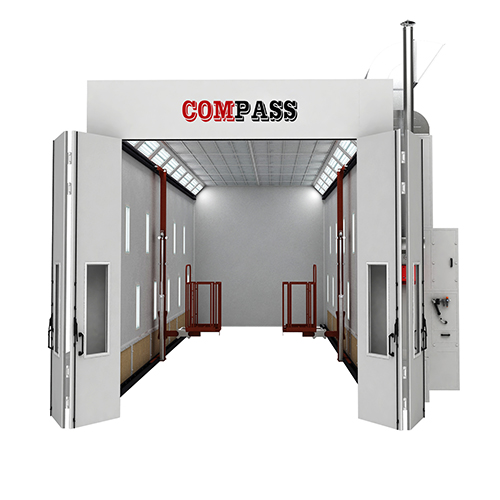

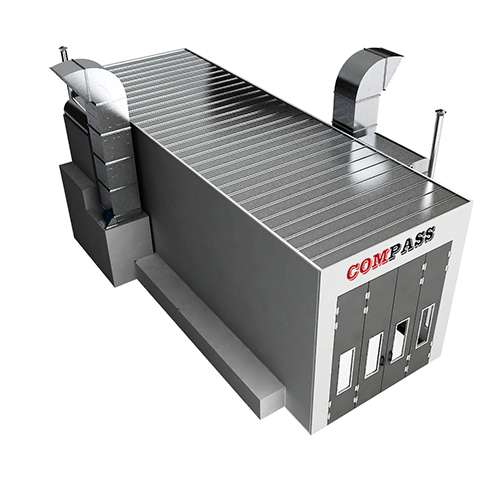

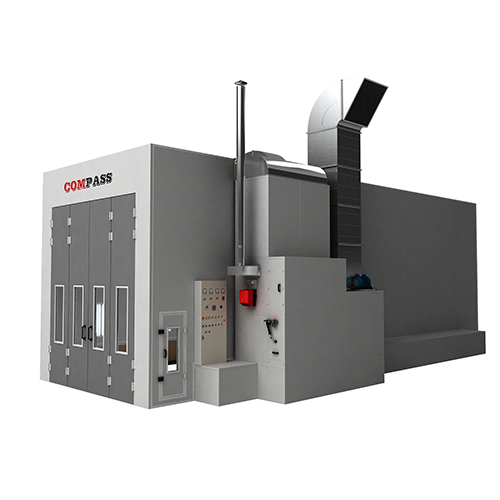

Bus and truck spray booth model CP-15-5

Spray booth model: CP-15-5 Sides exhausted bus and truck spray booth

Product feature:

1. Side exhausted type no need dig pit.

2. it's for less than 12m buses or middle size buses.

3. Diesel oil heating or gas heating by option

Product Specification：

Chamber Outside Dimension (mm):15125×6900×5600(L*W*H)

Chamber Inside dimension(mm): 15000×5000×5000(L*W*H)

Front door size（mm）: 4000*4600(W*H)

Service door size(mm): 2000*800(W*H)

Cabin system:

1. Front door: 4 folded sheet metal formed door

2. Wall panels: 75mm EPS sandwich panel, steel sheet thickness: 0.426mm

3. Ceiling panel: Galvanized steel sheet

4. Basement: Dig two rows pit. Two rows galvanized grids.

5. Glass: 5mm tempered glass

Air make-up system

Air ventilation system quantity: 2 units

1. Air inlet fan system：2 sets 7.5kw centrifugal fan

2. Exhausted fan system：1 set 15kw belt drive centrifugal fan

3. Air inlet capacity:40000m³/h*2

4. Air inlet capacity:40000m³/h*2

5. Exhausted ducting:six meters straight galvanized ducting and two 135 degrees elbows for each exhausted system

Purification system

1. Pre filter : G3 grade, pocket filter

2. Ceiling filter: 600G filter EU5 / F5

3. Floor filter: fiber glass filter

4. Exhausted filter:  pocket carbon filter

Heating system:

Heating units quantity: 2 sets

1. Heat Ex-changer: SUS 304 180KW stainless heating ex-changer

2. Heating burner: Riello G20 diesel oil burner

3. heating productivity: 200000Kcal/h*2

4. Spray to baking switch: Pneumatic damper

5. Chimney ducting: 4m straight chimney and one chimney hood for each heating system

6. Maximum temperature: Maximum 80℃

Lighting system:

1. Ceiling lighting: 18Units, each 4 *16.5W LED lamps.

2. 2. Side lights:  22Units, each 4 * 16.5W LED lamps.

3. Illumination: 1000LUX

Controlling system:

Spraying & baking switch, lighting switch, timer , temperature controlling switch, emergency stop, breakdown alarm, failure alarm, pressure gauge

Total Power: 64KW

Electrical Voltage：360-415V,3Phase, 50Hz/200-240V 60Hz, 3Phase
