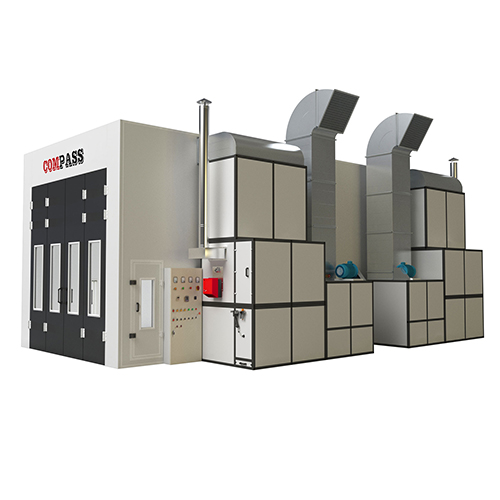

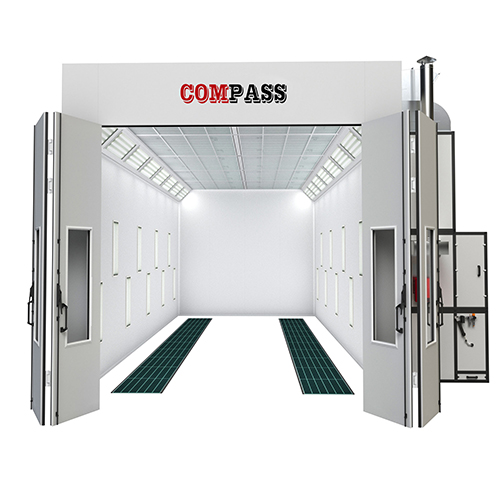

Spray booth model： CP-12-45
Product feature:
1. full down-draft type
2. disigned for small buses and small trucks minus 9m.
Specification:
Chamber Outside Dimension (mm):12125×6150×4100(L*W*H)
Chamber Inside dimension(mm): 12000×4500×3500(L*W*H)
Front door size（mm）: 3600*3800(W*H)
Service door size(mm): 2000*800(W*H)
Cabin system:
1. Front door: 4 folded sheet metal formed door
2. Wall panels: 75mm EPS sandwich panel, steel sheet thickness: 0.426mm
3. Ceiling panel: Galvanized steel sheet
4. Basement: Dig two rows pit. Two rows galvanized grids.
5. Glass: 5mm tempered glass
Air make-up system
Air ventilation system quantity: 2 units
1. Air inlet fan system：2 sets 5.5kw centrifugal fan, fan model:YDW-5.6S
2. Exhausted fan system：1 set 11kw belt drive centrifugal fan, fan model: TAE-630
3. Air inlet capacity:30000m3/h*2
4. 3. Air inlet capacity:30000m3/h*2
5. Exhausted ducting:six meters straight galvanized ducting and two 135 degrees elbows
Purification system
1. Pre filter : G3 grade, pocket filter
2. Ceiling filter: 600G filter EU5 / F5
3. Floor filter: fiber glass filter
4. Exhausted filter: pocket carbon filter
Heating system:
Heating units quantity: 2 sets
1. Heat Ex-changer: SUS 304 180KW stainless heating ex-changer
2. Heating burner: Riello G20 diesel oil burner
3. heating productivity: 200000Kcal/h*2
4. Spray to baking switch: Pneumatic damper
5. Chimney ducting: 4m straight chimney and one chimney hood for each heating system
6. Maximum temperature: Maximum 80℃
Lighting system:
1. Ceiling lighting: 16Units, each 4 *16.5W LED lamps.
2. 2. Side lights: 18Units, each 4 * 16.5W LED lamps.
3. Illumination: 1000LUX
Controlling system:
Spraying & baking switch, lighting switch, timer , temperature controlling switch, emergency stop, breakdown alarm, failure alarm, pressure gauge
Total Power: 29KW
Electrical Voltage：360-415V,3Phase, 50Hz/200-240V 60Hz, 3Phase

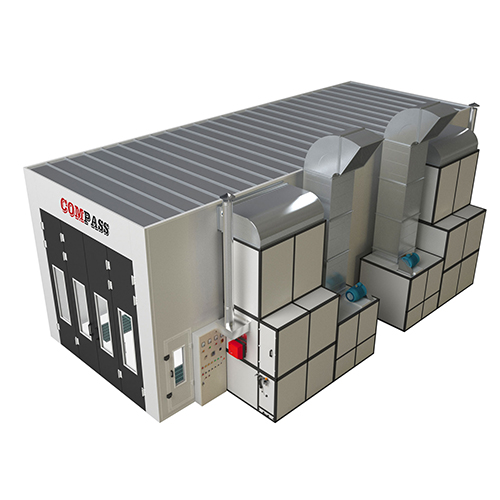

CP-15-5 Spray booth specification
Chamber Outside Dimension (mm):15125×6900×5600(L*W*H)
Chamber Inside dimension(mm): 15000×5000×5000(L*W*H)
Front door size（mm）: 4000*4600(W*H)
Service door size(mm): 2000*800(W*H)
Cabin system:
1. Front door: 4 folded sheet metal formed door
2. Wall panels: 75mm EPS sandwich panel, steel sheet thickness: 0.426mm
3. Ceiling panel: Galvanized steel sheet
4. Basement: Dig two rows pit. Two rows galvanized grids.
5. Glass: 5mm tempered glass
Air make-up system
Air ventilation system quantity: 2 units
1. Air inlet fan system：2 sets 7.5kw centrifugal fan
2. Exhausted fan system：1 set 15kw belt drive centrifugal fan
3. Air inlet capacity:40000m3/h*2
4. Air inlet capacity:40000m3/h*2
5. Exhausted ducting:six meters straight galvanized ducting and two 135 degrees elbows for each exhausted system
Purification system
1. Pre filter : G3 grade, pocket filter
2. Ceiling filter: 600G filter EU5 / F5
3. Floor filter: fiber glass filter
4. Exhausted filter: pocket carbon filter
Heating system:
Heating units quantity: 2 sets
1. Heat Ex-changer: SUS 304 180KW stainless heating ex-changer
2. Heating burner: Riello G20 diesel oil burner
3. heating productivity: 200000Kcal/h*2
4. Spray to baking switch: Pneumatic damper
5. Chimney ducting: 4m straight chimney and one chimney hood for each heating system
6. Maximum temperature: Maximum 80℃
Lighting system:
3. Ceiling lighting: 18Units, each 4 *16.5W LED lamps.
4. 2. Side lights: 22Units, each 4 * 16.5W LED lamps.
3. Illumination: 1000LUX
Controlling system:
Spraying & baking switch, lighting switch, timer , temperature controlling switch, emergency stop, breakdown alarm, failure alarm, pressure gauge
Total Power: 64KW
Electrical Voltage：360-415V,3Phase, 50Hz/200-240V 60Hz, 3Phase
