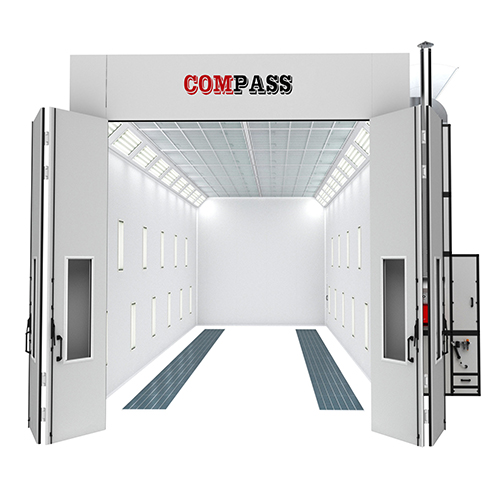

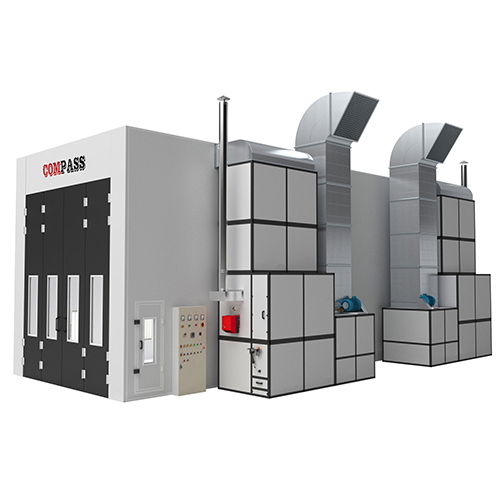

Bus and truck spray booth model CP-15-5

Spray booth model: CP-15-5

Product feature:

1. Full down-draft spray booth

2.  it's designing for less than 12m bus and middle size trucks.

Spray booth specification；

Chamber Outside Dimension (mm):15125×6900×5600(L*W*H)

Chamber Inside dimension(mm): 15000×5000×5000(L*W*H)

Front door size（mm）: 4000*4600(W*H)

Service door size(mm): 2000*800(W*H)

Cabin system:

1. Front door: 4 folded sheet metal formed door

2. Wall panels: 75mm EPS sandwich panel, steel sheet thickness: 0.426mm

3. Ceiling panel: Galvanized steel sheet

4. Basement: Dig two rows pit. Two rows galvanized grids.

5. Glass: 5mm tempered glass

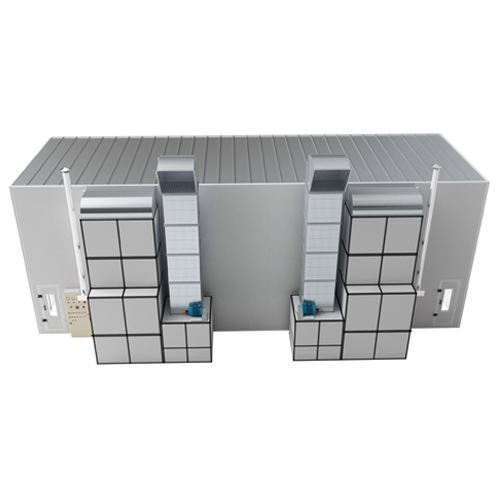

Air make-up system

Air ventilation system quantity: 2 units

1. Air inlet fan system：2 sets 7.5kw centrifugal fan

2. Exhausted fan system：1 set 15kw belt drive centrifugal fan

3. Air inlet capacity:40000m³/h*2

4. Air inlet capacity:40000m³/h*2

5. Exhausted ducting:six meters straight galvanized ducting and two 135 degrees elbows for each exhausted system

Purification system

1. Pre filter : G3 grade, pocket filter

2. Ceiling filter: 600G filter EU5 / F5

3. Floor filter: fiber glass filter

4. Exhausted filter:  pocket carbon filter

Heating system:

Heating units quantity: 2 sets

1. Heat Ex-changer: SUS 304 180KW stainless heating ex-changer

2. Heating burner: Riello G20 diesel oil burner

3. heating productivity: 200000Kcal/h*2

4. Spray to baking switch: Pneumatic damper

5. Chimney ducting: 4m straight chimney and one chimney hood for each heating system

6. Maximum temperature: Maximum 80℃

Lighting system:

1. Ceiling lighting: 18Units, each 4 *16.5W LED lamps.

2. 2. Side lights:  22Units, each 4 * 16.5W LED lamps.

3. Illumination: 1000LUX

Controlling system:

Spraying & baking switch, lighting switch, timer , temperature controlling switch, emergency stop, breakdown alarm, failure alarm, pressure gauge

Total Power: 64KW

Electrical Voltage：360-415V,3Phase, 50Hz/200-240V 60Hz, 3Phase
