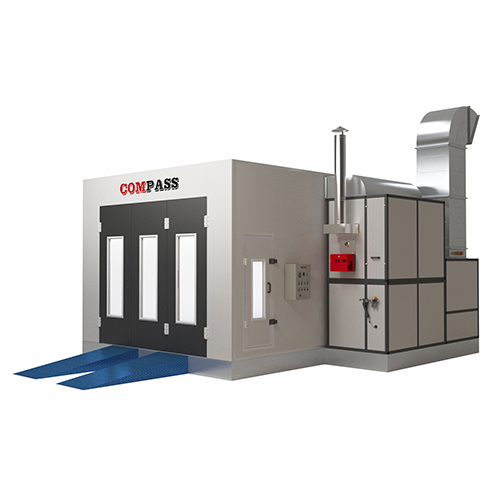

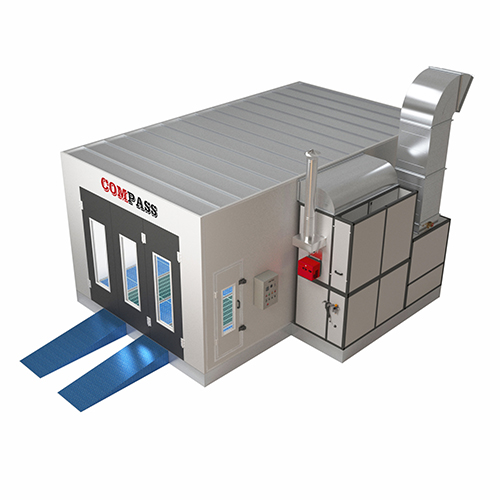

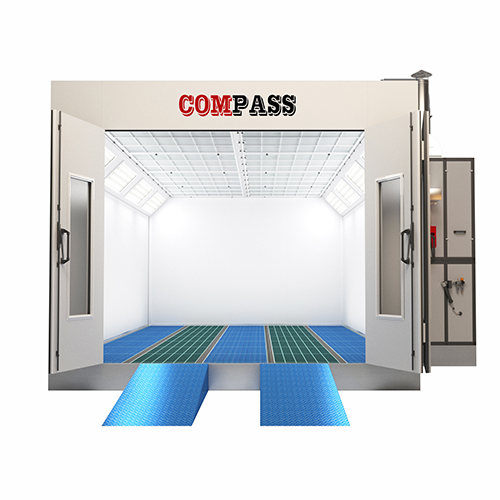

Car spray booth model: CP-200

Model No: CP-200 car spray booth

Production delivery time:7-10 days

Quality warranty time: 12months since customer receive the goods.

Product Feature:

1. Economical and practical

2. Small power and low energy consumption

3. good working function

4. Smoothly air recycling

Specification

Chamber Outside Dimension (mm):7000×5250×3400(L*W*H)

Chamber Inside dimension(mm): 6900*3900*2650(L*W*H)

Front door size（mm）: 3000*2600(W*H)

Service door size(mm): 2000*800(W*H)

Cabin system:

1. Front door: 3 folded sheet metal formed door

2. Wall panels: 50mm EPS sandwich panel, steel sheet thickness: 0.426mm

3. Ceiling panel: Galvanized steel sheet

4. Basement: 300mm depth construction galvanized basement, two rows galvanized grids and three rows checkered plates.

5. Glass:  5mm tempered glass

Air make-up system

1. Air inlet fan system：2 sets 4kw centrifugal fan, fan model: YDW-4.5L

2. Exhausted fan system：1 set 5.5kw centrifugal fan, fan model: YDW-5.6S

3. Air inlet capacity:24000m3/h

4. 3. Air inlet capacity:15000m3/h

5. Exhausted ducting: Four meters straight ducting for exhausted

Purification system

1. Pre filter : G3 grade

2. Ceiling filter: 600G filter EU5 / F5

3. Floor filter: Fiberglass filter

4. Exhausted filter: fiber glass and carbon filter

Heating system:

1. Heat Ex-changer: SUS 304 180KW stainless heating ex-changer

2. Heating burner: Riello G20 diesel oil burner

3. heating productivity: 200000Kcal/h

4. Spray to baking switch: Pneumatic damper

5. Chimney ducting: 4m straight chimney and one chimney hood

6. Maximum temperature: Maximum 80℃

Lighting system:

1. Ceiling lighting: 10Units, each 4 *16.5W LED lamps.

2. Side lights: for option

3. Illumination: 1000LUX

Controlling system:

Spraying & baking switch, lighting switch, timer , temperature controlling switch, emergency stop, breakdown alarm, failure alarm, pressure gauge

Total Power:  15KW

Electrical Voltage：360-415V,3Phase, 50Hz/200-240V 60Hz, 3Phase
